Pneumatisk spännare

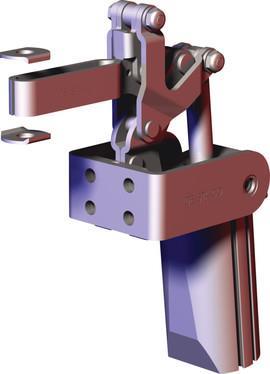

Pneumatic, toggle clamp version of manual clamp models 317-U and 317-S. Dual mounting surfaces for max flexibility. Built in flow control for smooth operation, magnetic ring piston for position sensing. Accommodates either T-slot (8EA-109-1) or round (810169) sensors.

• Dual mounting surfaces for maximum flexibility
• Sensor ready for round or T-slot style sensors
• Built-in flow restriction eliminates need for external flow controls
• Replacement Clamp Assembly: 817-S-LC

CAD:
